Контроллер видеозахвата HDMI / DVI в формате PCI-104, -40º ~ +85º C

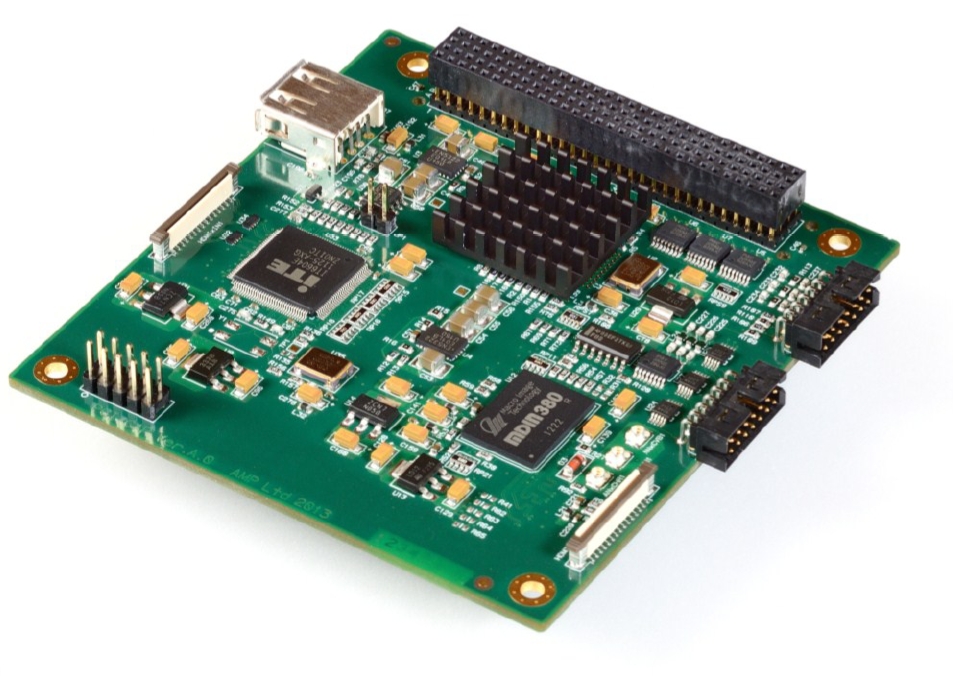

HDGrabber-DVI - HDMI/DVI Video Capture Controller for PCI-104
The HDGrabber-DVI is a high performance, High Definition, video capture and overlay card for PCI-104 systems. The HDGrabber-DVI provides a powerful and flexible solution for capturing HDMI/DVI digital video for software analysis and processing or local system display.
The HDGrabber-DVI features an advanced video scalar that reduces the frame rate of the incoming video allowing high frame-rate high resolution sources to be captured without any compression. This powerful solution supports raw video capture at Full HD resolution at 10fps (1920x1080@10Hz) from a 1080p60/1080p30 source. The flexible capture engine also supports lower resolution capture at higher frame rates. The capture engine is configurable under software control.
The HDGrabber-DVI is supported by drivers and example applications for Windows and Linux that use the OS standard DirectShow and V4L interfaces.
Highlights
Live DVI/HDMI video input
Flexible capture resolution and frame rate up to 1080p10
Hardware scaling
Framerate conversion
Efficient PCI DMA cycle operation
Drivers for Windows, Linux
Robust PCI-104 construction
Low Power Operation
Relevant Applications
High performance image capture
Vehicle-based Video Capture
Real-time Situational Awareness
Law Enforcement
Crime Scene Recording
Remote Video Surveillance
Asset Monitoring
Traffic Monitoring and Control
Video Acquisition and Analytics
PCI/104 Bus Interface
Compliant with PCI Rev 2.1
132MBytes/sec bandwidth at 33.33MHz bus speed
Live video capture to display, memory or disk
Video Input
Digital DVI input (DVI/HDMI)
Video Capture Resolutions
Supports wide range of capture resolutions, including:
1080p @ 10fps max
720p @ 20fps max
480p @ 60fps max
1024x768 @ 25fps
Video Scaler offers flexible hardware scaling of input video
Video Capture Formats
YCbCr 4:2:2
Video Processing
Arbitrary sizing, cropping, scaling of input video
System Requirements
x86 PC-Compatible PCI-104 Host Computer
VGA Display (if Video Preview to host is required)
Miscellaneous
Single +5V supply
Operating temp 0°C to 60°C
Operating temp –40°C to +85°C (extended temp option)
PCI-104 form factor
Software Drivers
Drivers for Windows XP, Linux
Sample video overlay and capture application in C/C++ source code
