Снято с производства (Juniper Mesa)

Снято с производства, заказ невозможен

Цвет

опции - защитный зеленый или серый цвет цвет корпуса

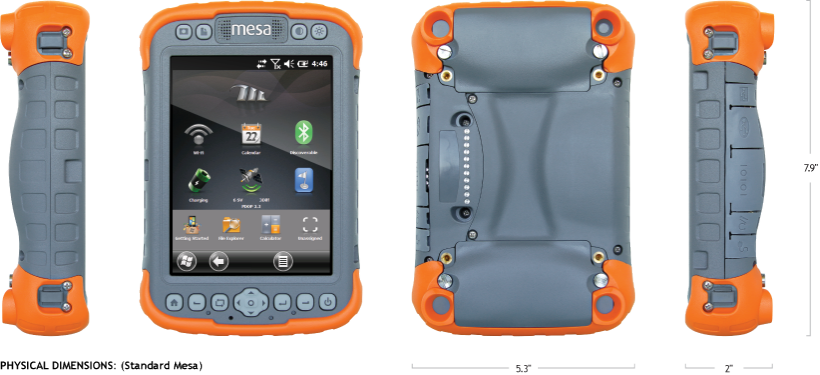

Физические характеристики (размеры, вес, конструкция корпуса)

Size, Standard models: 136 mm x 200 mm x 51 mm
Size, Geo models: 136 mm x 220 mm x 51 mm
Weight: 862 with one battery, 998 g with two batteries
Magnesium alloy case front, plastic back
Mounting holes for external accessories
Adjustable, multi-position hand strap
Easy to grip, impact absorbing bumpers

Процессор

806 Mhz PXA320 Processor

Операционная система

Microsoft® Windows Embedded Handheld 6.5 или Android

Оперативная память, хранение данных

256 MB RAM
4 GB Flash Storage
SD/SDHC slot, user accessible

Сенсорный экран

Active viewing area: 5.7" (145 mm) color VGA LCD (640 x 480)
High visibility backlit LCD
Portrait or landscape orientation

Клавиатура

15 control buttons
(6 user reassignable)
Five-way directional navpad
Adjustable LED backlit keys

Питание

Intelligent Li-Ion battery 7.4VDC @ 2550mAh, 18.87Whr, weight: 3.7oz (105g)
Two battery slots, warm-swappable
Operates for up to 16 hours on one charge
Charges in 2 to 4 hours
Battery easily changeable in field

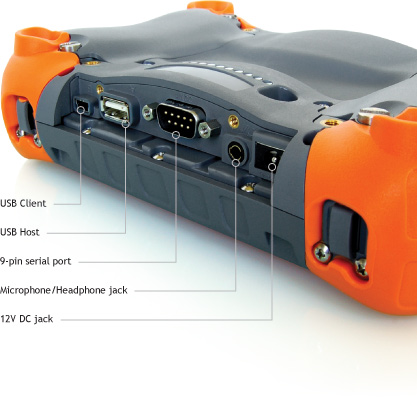

Порты и разъемы

COM1, RS-232C 9-pin D connector with 5VDC power on DTR pin
USB Host (Full A), USB Client (Mini B)
12VDC @ 800mA, 10–18V unregulated
3.5 mm audio jack, supports speaker/microphone or stereo output (pin detect)

Условия эксплуатации

IP67 waterproof and dustproof
Operating Temperature: –30C to 60C
Storage Temperature: –30C to 70C
Note: Bluetooth® wireless technology is rated to –20C
Shockproof: multiple drops from 4' (1.2 m) onto concrete
MIL-STD-810G Test Procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock
Optional Class I, Div 2 non-incendive rating for use in hazardous locations

Коммуникации

Bluetooth® wireless technology, 2.0 +EDR, Class 1, range 30 m
Wi-Fi 802.11b/g
WWAN 3.5GHSDPA Modem
Frequencies: HSDPA/UMTS: 850/1900/2100 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
AT&T® Network Ready Approved (Geo 3G Model Only)
Data communication interface, SMS

Навигация

GPS (GEO MODELS)
2 to 5 meter typical accuracy
Integrated real-time SBAS

Камера

CAMERA (GEO MODELS)
3.2MP resolution with autofocus
Juniper Geotagging; embed and emboss photo with date, time, and GPS position

Варианты комплектации

Standard Model: Wi-Fi® & Bluetooth® wireless technology

Geo Model: Wi-Fi® & Bluetooth® wireless technology, 3.2MP Camera,GPS

Geo 3G Model: Wi-Fi® & Bluetooth® wireless technology 3.2MP Camera, GPS, 3G GSM Modem (AT&T® Network Approved)

Сертификация и соответствие стандартам

All three models of the Mesa Rugged Notepad™ must be certified and approved to be sold into individual countries. To download a list of approved countries, please click here.
FCC Class B
CE Marking (applicable EMC, R&TTE, and LVD directives)
Industry Canada
EN60950 Safety
RoHS Compliant
Class I, Div 2 non-incendive per approval standard UL 1604 CSA 213 (optional)

Стандартная комплектация

Li-Ion Battery
Hand Strap
Stylus
USB Download Cable
100-240VAC Power Supply
Screen Protector

Опции

1D/2D Barcode Imager
Travel Charger
12VDC Vehicle Charger
International AC Charger Kit
Mesa Mobile Dock
